Two-Fluid Atomization Technology Airspace Scenting Air Fragrance
Machine for Small Area
Instruction
CH124 air fragrance machine is powered by plug and is very easy to
use and maintenance.
Regarding to the make our airspace full of scenting air, we could
operate CH124 as below steps.
Step 1; add the essential oils or aroma oils into the oil bottle.
CH124 air fragrance machine is combined with the upper part and the
bottle part.
- Holding the upper and lower parts of machine with your hands
- Pull up the upper part with the bottle together away from the
bottom part
- Rotating counterclockwise to separate the bottle and upper part
- Remove the bottle and put into suitable amount oil in it
- Rotating the bottle back to upper part, put back the upper part
into the bottom part according to indicated position.
- Done!
Step 2, connect the power supply
Step 3, set the program timing same as your local country
Step 4, set the machine scent intensity and the machine working
time.
Done!
Also, CH124 air fragrance machine is very easy for the maintenance.
Because of the different essential oils will have some sediment,
after a period of use, the sediment will remain on the filter head,
the filter and the atomizing core, thus affecting the flavoring
effect of the flavoring machine. So in the bellowing cases, please
do the maintenance same as our instruction.
In the below cases, please do the maintenance same as our
instruction.
| Case 1 | If don't use for a long time, please clean the machine after final
use. |
| Case 2 | Every one- two months clean one time. |
| Case 3 | Before change to another flavor of the essential oil |
| Cleaning steps | 1, Put the 95% alcohol into the empty bottle, |
| 2, Set the strongest intensity, turn on the machine to work for
10-15 minutes, |
| 3, Turn off it and finally pour away the alcohol. |
Product Data
| Model No. | CH124 air fragrance machine |
| Shell Material | Aluminum with anodized treatment |
| Atomizer Material | Aluminum |
| Color | Sliver , Black |
| Dimension | 285H X 70 Dia. 1 X 11.2 Dia.2 mm |
| Net Weight | 1.3kg |
| Certification | CE and more |
| Packing Way | Inner foam, inner box, master carton |
| Standard Packing | 10 Piece / Master Carton |
| Power Supply | DC12V/5W |
| Coverage | 200 cubic meters ; 60 square meters ;600 square feet |
| Installation Way | Tabletop |
| Essential Oil Bottle Capacity | 100ml |
| Essential Oil Consumption | 0.05ml ~ 0.95 /H |
| Bottle Material | Plastic |
| Memory Battery | Have |
| Noise Level | < 38dba |
| Private Label Service | Yes, we have |
| Origin | Made in China |

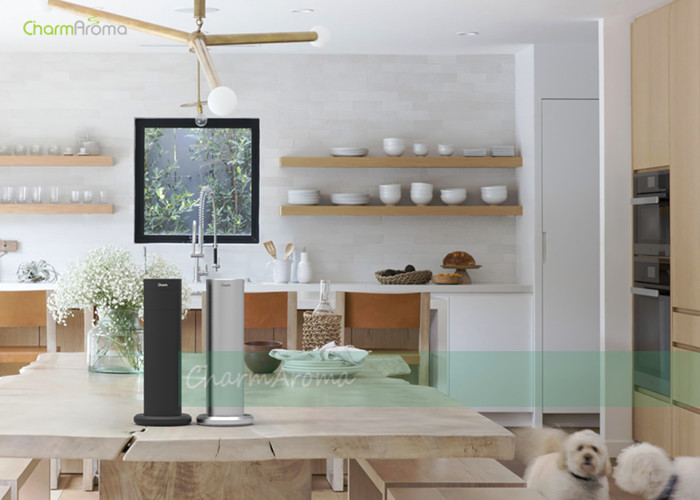

The applications of CH124 air fragrance machine
CH124 air fragrance machine is with Japanese air pump and it could
cover 600 square feet area. So it is very suitable for the small
areas included meeting rooms, brand shops, home rooms, VIP rooms,
SPA shops, Gym Shops, Receptions and more.
